Economy-Minded Dust Cab 800 & 1500 Units

Dust Cab Filtration Systems are designed to provide efficient, cost-effective control of dry dusts, fumes and smoke generated from sanding, grinding, welding, and other processes. Typically used for light to moderate concentrations of dry contaminants, the Dust Cab collectors are provided with manual bag shaker cleaning to minimize maintenance and reduce replacement filter costs. These smaller sized collectors are a low-cost alternative to self-cleaning cartridge dust collectors.

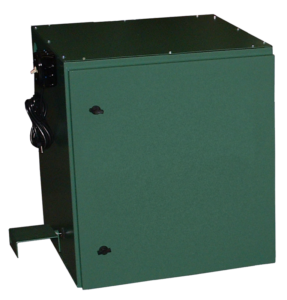

The Dust Cab 800 is a self-contained, ready to be powered, compact source capture dust collector which can be configured a couple of different ways – as a floor mounted unit or a portable unit utilizing a caster mount. The overall size of the collector is designed to fit under a standard workbench. The Dust Cab 1500 is a larger source capture collector designed for more demanding applications.

Contact Us

Want more information?

We would love the opportunity to evaluate your specific needs and provide you with the most accurate and detailed information possible. Please continue scrolling for detailed product information, or click the ‘Contact Us’ button to request more information or speak with us directly.

Contact Us

  • Direct drive forward curved blower with a 1 HP TEFC motor delivering 800 CFM at 3 inches external static pressure
  • 115/220 volt single phase blower motor
  • Low noise level at 66 dBA
  • Manual foot shaker to manually clean the filter bags
  • Pull out dust drawer with a holding capacity of 0.9 cubic feet
  • Standard 4 inch inlet collar which is mounted on the rear of the unit
  • Bubble gasket seal on blower and filter access doors
  • 22 envelope pocket, flame retardant cotton sateen filters
  • Total filter area is 55 square feet with tool-less filter replacement
  • Built-in sound attenuator
  • 16 ga metal construction with a heavy duty texture powder coat finish
  • Direct drive forward curved blower with a 3 HP TEFC motor delivering 1500 CFM at 3 inches external static pressure
  • Low noise level at 74 dBA
  • Manual foot shaker to manually clean the filter bags
  • 3″ deep pull out dust drawer
  • Standard 8-inch inlet collar which is mounted on the rear of the unit
  • Bubble gasket seal on blower and filter access doors
  • 24 envelope pocket, flame retardant cotton sateen filters
  • Total filter area is 180 square feet
  • Built-in sound attenuator
  • 16 ga metal construction with a heavy-duty textured powder coat

DUST CAB SYSTEM DIMENSIONS & SPECIFICATIONS

MODEL FILTER AREA NOMINAL CFM HP SIZE(D x W x H)
Dust Cab 800 55 sq. ft. 800 1 25″ x 24″ x 29″
Dust Cab 1500 180 sq. ft. 1500 3 29″ x 33″ x 68″
